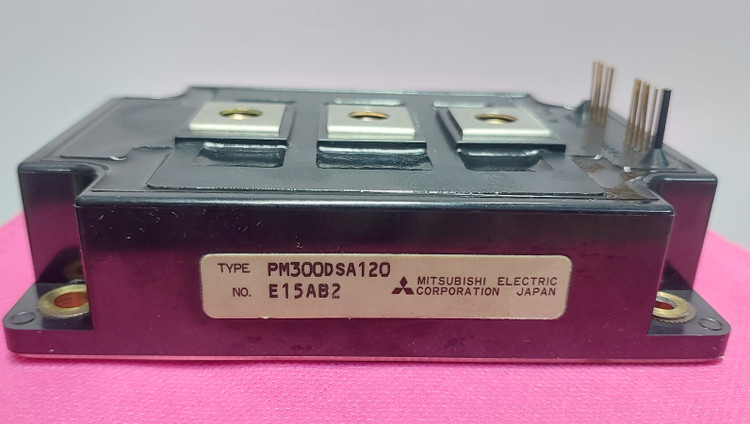

PM300DSA120

MITSUBISHI INTELLIGENT POWER MODULES
PM300DSA120
FLAT-BASE TYPE
INSULATED PACKAGE
A
B
H C2E1 E2 N SIDE VN1
SNR
H J
1.
2.
3.
4.
5.
CN1
T - DIA.
(2 TYP.)
VNC
FNO
1.
2.
3.
4.
5.
P SIDE
VP1
SPR
CP1
VPC
FPO
C1
N
12345
C D
N E
P
2345
1
S - (8 TYP.)
K
R - DIA.
(4 TYP.)
P - M8 THD.
(3 TYP.)
F G VP1 FPO
SPR
CP1
VPCVN1
FNO
SNR
CN1
VNC
0.64 MM SQ. PIN
(10 TYP.)
L
M
Q
C1
VCC
FO
SR
IN
TEMP OUT1
OUT2
SENS
SINK
GND
C2E1
VCC
FO
SR
IN
TEMP OUT1
OUT2
SENS
SINK
GND
E2
Description:
Mitsubishi Intelligent Power Modules are isolated base modules designed for power switching applications operating at frequencies to
20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel
diode power devices.
Features:
u Complete Output Power
Circuit
u Gate Drive Circuit
u Protection Logic
– Short Circuit
– Over Current
– Over Temperature
– Under Voltage
Applications:
Outline Drawing and Circuit Diagram
Dimensions Inches Millimeters
A 5.12 130.0
B 4.33±0.010 110.0±0.25
C 3.54 90.0
D 2.76±0.010 70.0±0.25
E 1.61 41.0
F 1.34 +0.04/-0.02 34.0 +1/-0.5
G 1.22 31.0
H 1.10 28.0
J 1.06 27.0
Dimensions Inches Millimeters
K 0.71 18.0
L 0.57 14.5
M 0.53 13.5
N 0.51 13.0
P M8 Metric M8
Q 0.28 7.0
R 0.26 Dia. Dia. 6.5
S 0.100 2.54
T 0.08 Dia. Dia. 2.0
u Inverters
u UPS
u Motion/Servo Control
u Power Supplies
Ordering Information:
Example: Select the complete
part number from the table below
-i.e. PM300DSA120 is a 1200V,
300 Ampere Intelligent Power Module.
Type Current Rating Amperes VCES
Volts (x 10)
PM 300 120
Sep.1998
MITSUBISHI INTELLIGENT POWER MODULES
PM300DSA120
FLAT-BASE TYPE
INSULATED PACKAGEAbsolute Maximum Ratings, Tj = 25°C unless otherwise specified
Ratings Symbol PM300DSA120 Units
Power Device Junction Temperature Tj -20 to 150 °C
Storage Temperature Tstg -40 to 125 °C
Case Operating Temperature TC -20 to 100 °C
Mounting Torque, M6 Mounting Screws — 3.92~5.88 N · m
Mounting Torque, M8 Main Terminal Screws — 8.83~10.8 N · m
Module Weight (Typical) — 910 Grams
Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part) VCC(prot.) 800 Volts
Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso 2500 Vrms
Control Sector
Supply Voltage (Applied between VP1-VPC, VN1-VNC) VD 20 Volts
Input Voltage (Applied between CP1-VPC, CN1-VNC) VCIN 10 Volts
Fault Output Supply Voltage (Applied between Fpo-Vpc and Fno-Vnc) VFO 20 Volts
Fault Output Current (Sink Current at FPO, PNO Terminal) IFO 20 mA
IGBT Inverter Sector
Collector-Emitter Voltage (VD = 15V, VCIN = 5V) VCES 1200 Volts
Collector Current, (Tc = 25°C) IC 300 Amperes
Peak Collector Current, (Tc = 25°C) ICP 600 Amperes
Supply Voltage (Applied between C1 - E2) VCC 900 Volts
Supply Voltage, Surge (Applied between C1 - E2) VCC(surge) 1000 Volts
Collector Dissipation PC 1790 Watts
Sep.1998
MITSUBISHI INTELLIGENT POWER MODULES
PM300DSA120
FLAT-BASE TYPE
INSULATED PACKAGEElectrical and Mechanical Characteristics, Tj = 25°C unless otherwise specified
Characteristics Symbol Test Conditions Min. Typ. Max. Units
Control Sector
Over Current Trip Level Inverter Part OC -20°C ≤ T ≤ 125°C, VD = 15V 380 560 — Amperes
Short Circuit Trip Level Inverter Part SC -20°C ≤ T ≤ 125°C, VD = 15V 500 840 — Amperes
Over Current Delay Time toff(OC) VD = 15V — 5 — µs
Over Temperature Protection OT Trip Level 100 110 120 °C
OTr Reset Level 85 95 105 °C
Supply Circuit Under Voltage Protection UV Trip Level 11.5 12.0 12.5 Volts
UVr Reset Level — 12.5 — Volts
Supply Voltage VD Applied between VP1-VPC, VN1-VNC 13.5 15 16.5 Volts
Circuit Current ID VD = 15V, VCIN = 5V, VN1-VNC — 23 30 mA
VD = 15V, VCIN = 5V, VXP1-VXPC — 23 30 mA
Input ON Threshold Voltage Vth(on) Applied between 1.2 1.5 1.8 Volts
Input OFF Threshold Voltage Vth(off) CP1-VPC, CN1-VNC 1.7 2.0 2.3 Volts
PWM Input Frequency fPWM 3-φ Sinusoidal — 15 20 kHz
Fault Output Current IFO(H) VD = 15V, VFO = 15V — — 0.01 mA
IFO(L) VD = 15V, VFO = 15V — 10 15 mA
Minimum Fault Output Pulse Width tFO VD = 15V 1.0 1.8 — ms
SXR Terminal Output Voltage VSXR -20°C ≤ Tj ≤125°C, Rin = 6.8 kΩ (SPR, SNR) 4.5 5.1 5.6 Volts
Sep.1998
MITSUBISHI INTELLIGENT POWER MODULES
PM300DSA120
FLAT-BASE TYPE
INSULATED PACKAGEElectrical and Mechanical Characteristics, Tj = 25°C unless otherwise specified
Characteristics Symbol Test Conditions Min. Typ. Max. Units
IGBT Inverter Sector
Collector Cutoff Current ICES VCE = VCES, Tj
= 25°C — — 1 mA
VCE = VCES, Tj
= 125°C — — 10 mA
Emitter-Collector Voltage VEC -IC = 300A, VD = 15V, VCIN = 5V — 2.5 3.5 Volts
Collector-Emitter Saturation Voltage VCE(sat) VD = 15V, VCIN = 0V, IC = 300A — 2.3 3.2 Volts
VD = 15V, VCIN = 0V, IC = 300A, — 2.1 2.9 Volts
Tj
= 125°C
Inductive Load Switching Times ton 0.5 1.4 2.5 µs
trr VD = 15V, VCIN = 0 ↔ 5V — 0.2 0.4 µs
tC(on) VCC = 600V, IC = 300A — 0.4 1.0 µs
toff Tj
= 125°C — 2.5 3.5 µs
tC(off) — 0.6 1.1 µs
Thermal Characteristics
Characteristic Symbol Condition Min. Typ. Max. Units
Junction to Case Thermal Resistance Rth(j-c)Q Each IGBT — — 0.07 °C/Watt
Rth(j-c)F Each FWDi — — 0.13 °C/Watt
Contact Thermal Resistance Rth(c-f) Case to Fin Per Module, Thermal Grease Applied
— — 0.030 °C/Watt
Recommended Conditions for Use
Characteristic Symbol Condition Value Units
Supply Voltage VCC Applied across C1-E2 Terminals 0 ~ 800 Volts
VD Applied between VP1-VPC, VN1-VNC 15 ± 1.5 Volts
Input ON Voltage VCIN(on) Applied between 0 ~ 0.8 Volts
Input OFF Voltage VCIN(off) CP1-VPC, CN1-VNC 4.0 ~ VSXR Volts
PWM Input Frequency fPWM Using Application Circuit 5 ~ 20 kHz
Minimum Dead Time tdead Input Signal ≥ 3.5 µs
Sep.1998
MITSUBISHI INTELLIGENT POWER MODULES
PM300DSA120
FLAT-BASE TYPE
INSULATED PACKAGE
SATURATION VOLTAGE
CHARACTERISTICS (TYPICAL)
5
SATURATION VOLTAGE VCE(sat), (VOLTS)
VD = 15V
VCIN = 0V
4
Tj
= 25oC
Tj = 125oC
3
2
1
0
0 100 200 300 400
500 COLLECTOR CURRENT, IC, (AMPERES)
SWITCHING TIME VS.
COLLECTOR CURRENT (TYPICAL)
101
SWITCHING TIMES, ton, toff, (µs)
100
10-1
toff
ton
VCC = 600V
VD = 15V
Inductive Load
Tj = 25oC
Tj = 125oC
101 102 103
COLLECTOR CURRENT, IC, (AMPERES)
DIODE FORWARD CHARACTERISTICS
103
COLLECTOR REVERSE CURRENT, -IC, (AMPERES)
102
101
100
VD = 15V
VCIN = 5V
Tj
= 25oC
Tj = 125oC
0 0.5 1.0 1.5 2.0
2.5
3.0
EMITTER-COLLECTOR VOLTAGE, VEC, (VOLTS)
COLLECTOR-EMITTER SATURATION VOLTAGE
SWITCHING TIMES, tc(on), tc(off), (µs)
OVER CURRENT TRIP LEVEL % (NORMALIZED)
COLLECTOR-EMITTER SATURATION
VOLTAGE CHARACTERISTICS (TYPICAL)
OUTPUT CHARACTERISTICS
(TYPICAL)
5
500
IC = 300A
VCIN = 0V
Tj
= 25oC
15
VCIN = 0V
COLLECTOR CURRENT, IC, (AMPERES)
VD = 17V 13
4
Tj = 25oC
Tj = 125oC
400
VCE(sat), (VOLTS)
3
300
2
200
1
100
0
0
0 12 14 16 18 20
012
3 4
5
SUPPLY VOLTAGE, VD, (VOLTS)
COLLECTOR-EMITTER VOLTAGE, VCE, (VOLTS)
SWITCHING TIME VS.
COLLECTOR CURRENT (TYPICAL)
REVERSE RECOVERY CURRENT VS.
COLLECTOR CURRENT (TYPICAL)
101
100
103
VCC = 600V
VD = 15V
Inductive Load
Tj = 25oC
Tj = 125oC
REVERSE RECOVERY TIME, trr, (µs)
trr
100
10-1
102
Irr
tc(off)
tc(on)
VCC = 600V
VD = 15V
Inductive Load
Tj = 25oC
Tj
= 125oC
10-1
10-2
101
101 102 103
101 102 103
COLLECTOR CURRENT, IC, (AMPERES)
COLLECTOR REVERSE CURRENT, -IC, (AMPERES)
OVER CURRENT TRIP LEVEL VS.
SUPPLY VOLTAGE (TYPICAL)
OVER CURRENT TRIP LEVEL VS.
TEMPERATURE (TYPICAL)
120
160
100
140
80
120
60
100
40
80
20
Tj = 25oC
OVER CURRENT TRIP LEVEL % (NORMALIZED)
VD = 15V0 0
0 40 80 120 160
0 13 15 17 19 21
JUNCTION TEMPERATURE, TC, (o
C)
SUPPLY VOLTAGE, VD, (VOLTS)
REVERSE RECOVERY CURRENT, Irr, (AMPERES)
Sep.1998
MITSUBISHI INTELLIGENT POWER MODULES
PM300DSA120
FLAT-BASE TYPE
INSULATED PACKAGE
FAULT OUTPUT PULSE WIDTH VS.
TEMPERATURE (TYPICAL)
140
FAULT OUTPUT PULSE WIDTH % (NORMALIZED)
VD = 15V
120
100
80
60
0 0 40 80 120
JUNCTION TEMPERATURE, TC, (o
C)
TRANSIENT THERMAL
IMPEDANCE CHARACTERISTICS
(Each FWDi)
TRANSIENT IMPEDANCE, Zth(j-c), (NORMALIZED VALUE)
101
100
10-1
10-2
SINGLE PULSE
STANDARD VALUE = Rth(j-c)F = 0.13oC/W
10-3
10-3 10-210-1 TIME, (s)
100 14
13
UV TRIP-RESET LEVEL,
UV, UVr, (VOLTS)
12
11
10
0
160
101
CONTROL SUPPLY VOLTAGE TRIP-RESET
LEVEL TEMPERATURE DEPENDENCY
(TYPICAL)
UV
UVr
0 40 80 120
160
JUNCTION TEMPERATURE, TC, (o
C)
TRANSIENT IMPEDANCE, Zth(j-c), (NORMALIZED VALUE)
TRANSIENT THERMAL
IMPEDANCE CHARACTERISTICS
(Each IGBT)
101
100
10-1
10-2
SINGLE PULSE
STANDARD VALUE = Rth(j-c)Q = 0.07oC/W
10-3
10-3 10-2
10-1 TIME, (s)
100 101
Sep.19
