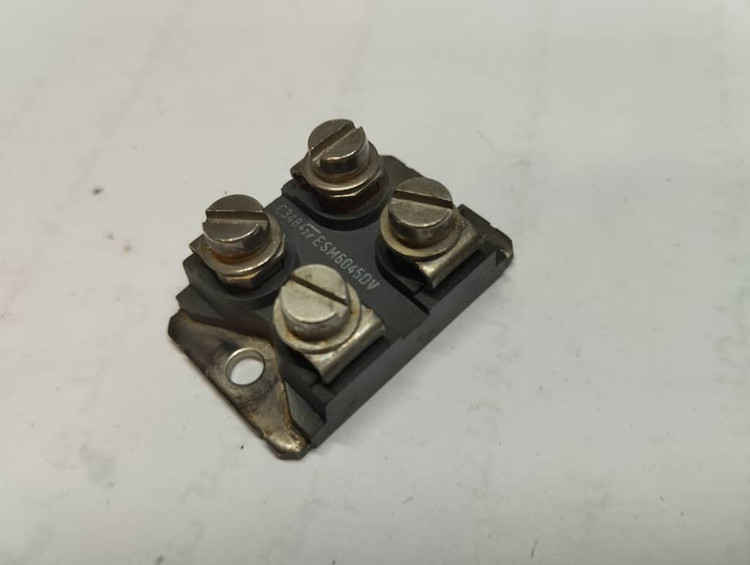

دارلینگتونESM6045DV

ESM6045DV
NPN DARLINGTON POWER MODULE
■ HIGH CURRENT POWER BIPOLAR MODULE
■ VERY LOW Rth JUNCTION CASE
■ SPECIFIED ACCIDENTAL OVERLOAD
AREAS
■ ■ ULTRAFAST FREEWHEELING DIODE
FULLY INSULATED PACKAGE (UL
COMPLIANT)
■ EASY TO MOUNT
■ LOW INTERNAL PARASITIC INDUCTANCE
INDUSTRIAL APPLICATIONS:
■ MOTOR CONTROL
■ SMPS & UPS
■ DC/DC & DC/AC CONVERTERS
■ WELDING EQUIPMENT
ISOTOP
INTERNAL SCHEMATIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
VCEV Collector-Emitter Voltage (VBE = -5 V) 600 V
VCEO(sus) Collector-Emitter Voltage (IB = 0) 450 V
VEBO Emitter-Base Voltage (IC = 0) 7 V
IC Collector Current 84 A
ICM Collector Peak Current (tp = 10 ms) 126 A
IB Base Current 8 A
IBM Base Peak Current (tp = 10 ms) 16 A
Ptot Total Dissipation at Tc = 25 o
C 250 W
Visol Insulation Withstand Voltage (RMS) from All
Four Terminals to Exernal Heatsink
2500 V
Tstg Storage Temperature -55 to 150 o
C
Tj Max. Operating Junction Temperature 150 o
